Line Laser Focus Sensor

Line Laser Focus Sensor

MLAF-6V is an active line laser focusing sensor that integrates an optical system and a microprocessing system inside. It can monitor the focus clarity of the object being measured in real time and provide feedback on the relative information, which is used to control the motor system to adjust the distance between the main optical axis and the object being measured, achieving the purpose of focusing.

Contact Downloads

Features

    Real-time focusing: Quickly adjust the focal length within 100ms, maintain high focusing clarity with high-speed focusing.
    Segmented measurement: The laser beam can be divided into seven segments for more accurate focus judgment.
    Multiple material adaption: It can be applied to detect various surfaces and materials.
    Flexible configuration: Provide software settings and control GUI to adjust flexibly according to the characteristics of the object being measured.
Features

Redefining, Creating Miracles

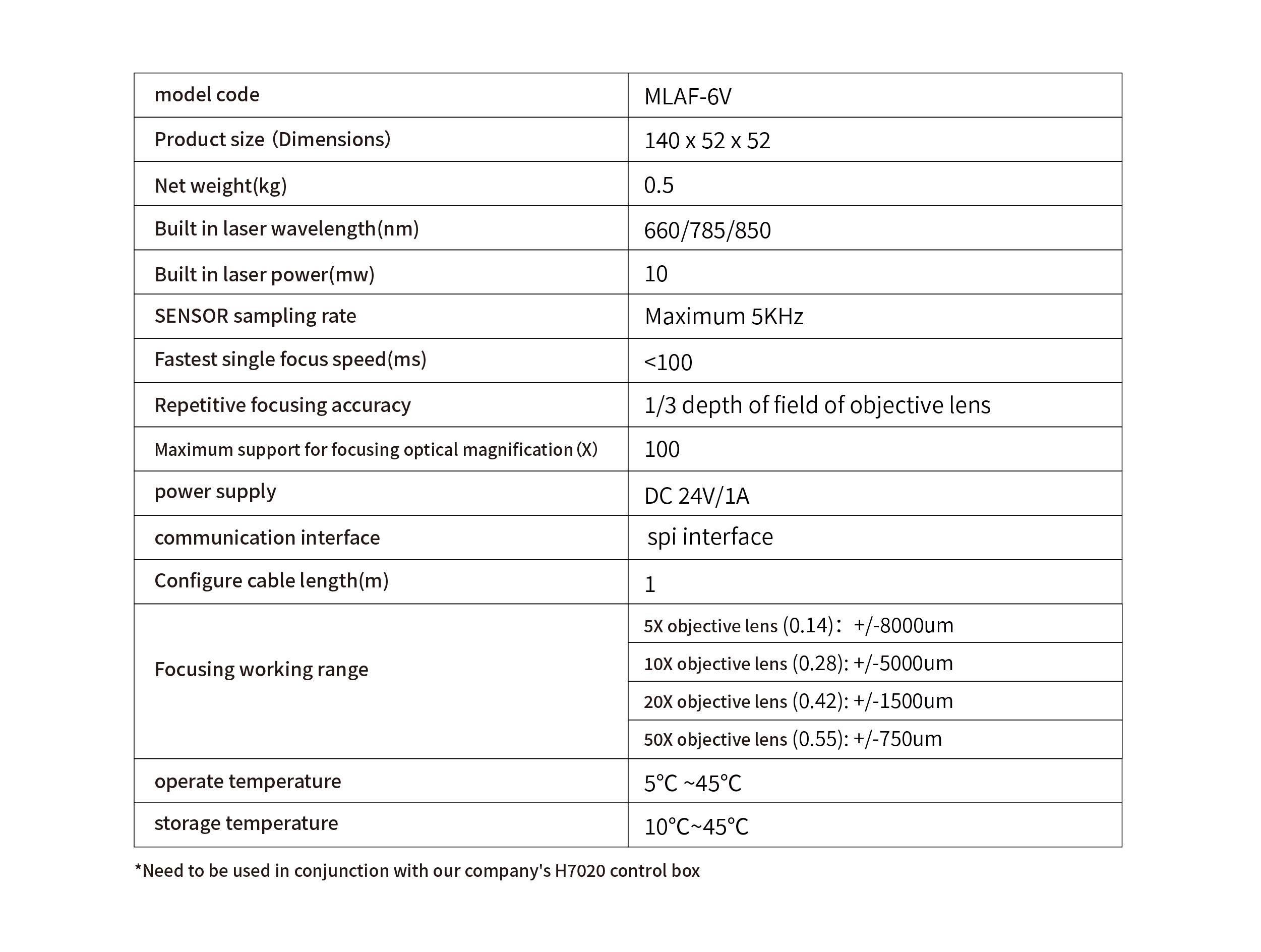

Product Parameters

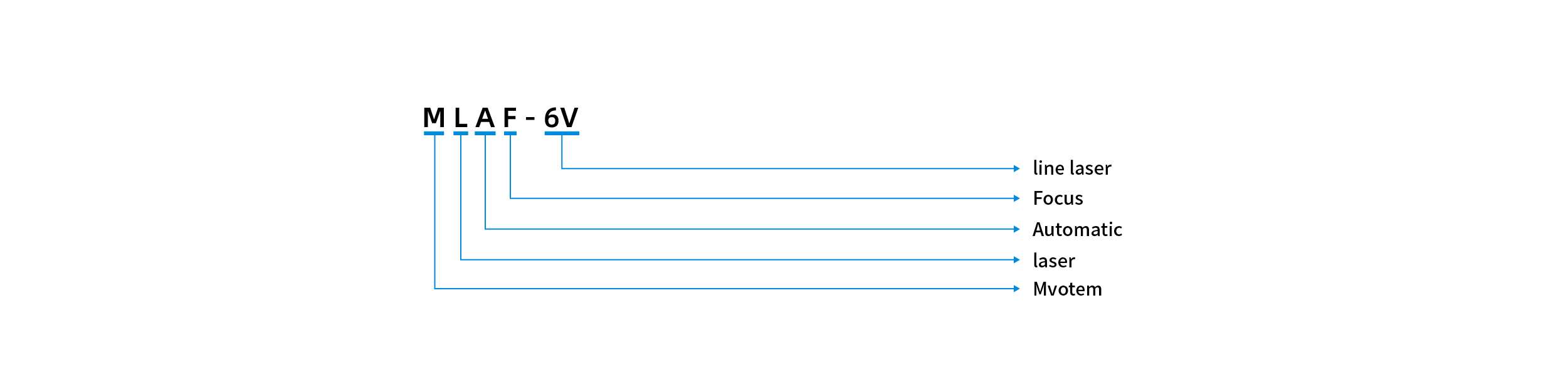

Model Specification
