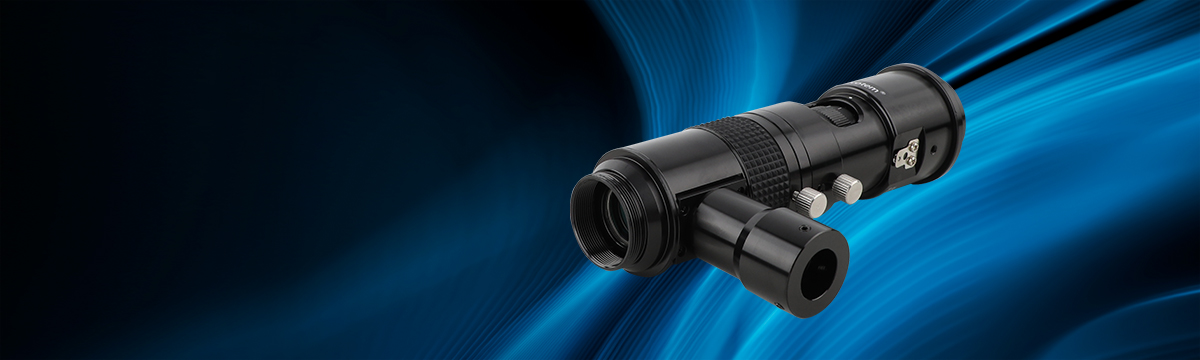

Built-in Micro-adjustment + Coaxial Variable Magnification Lens

Built-in Micro-adjustment + Coaxial Variable Magnification Lens

This product features a modular design with a wide range of magnification, covering 0.09-180x optical zoom. It provides high-resolution and high-contrast imaging, and accurate magnification with 6 and 9 magnification settings (customizable).

Contact Downloads

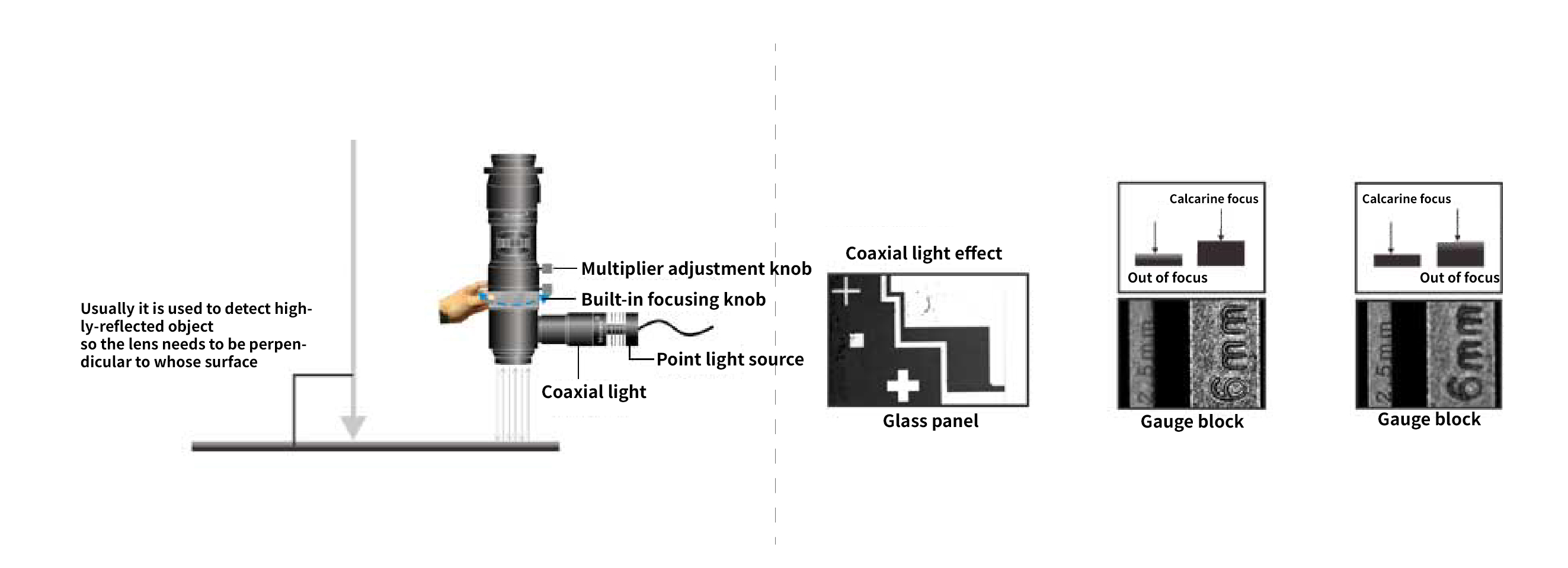

Features

    This product features a modular design with a wide range of magnification, covering 0.09-180x optical zoom, and high-resolution, high-contrast imaging.
    It is suitable for high-reflection products such as glass and wafers.
    Can be used to test uneven products with built-in focusing.
    The magnification is accurate, with 6 and 9 magnification settings (customizable).
    The built-in fine adjustment can reach up to 10mm, and the length can be customized.
    It has high repeat positioning accuracy, with repeatability up to 1um.
    The zoom process is smooth and stable, with minimal center shift for comfortable use.
    Made of high-hardness and wear-resistant materials, it has a long service life.
    Universal ring light interface, can be configured with any bottom light source or ring lighting source as needed
    Automatically adjust focus when the lens distance changes.
Features

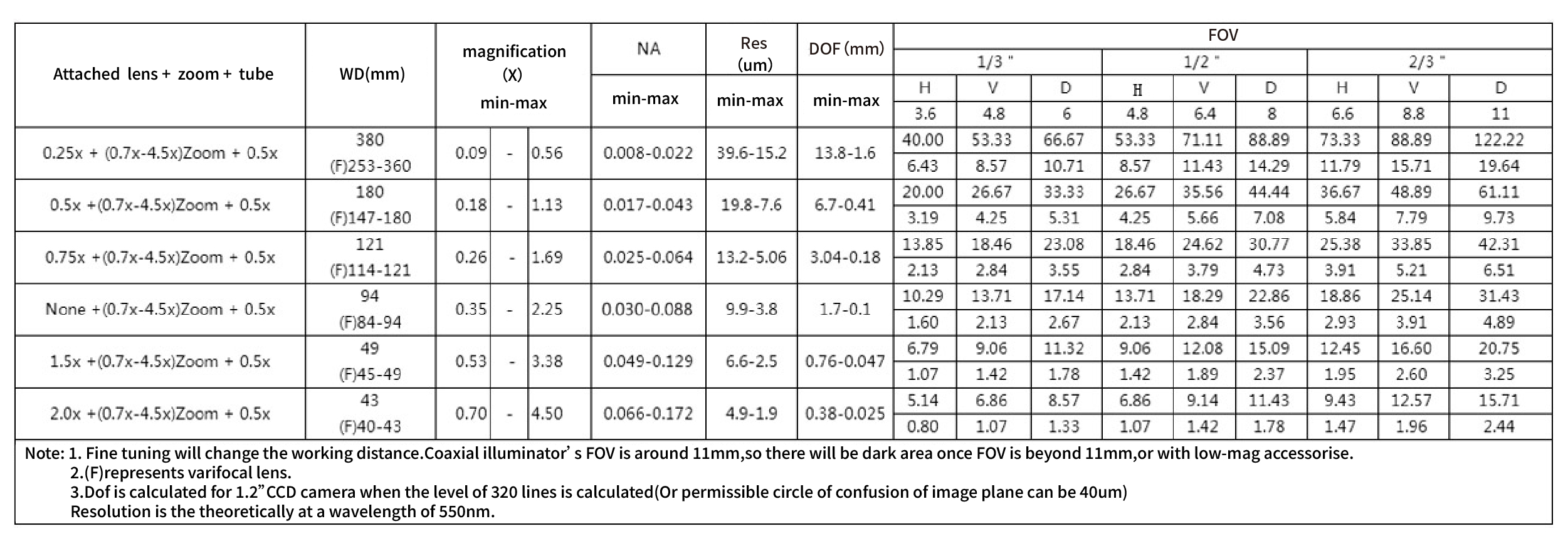

Product Parameters

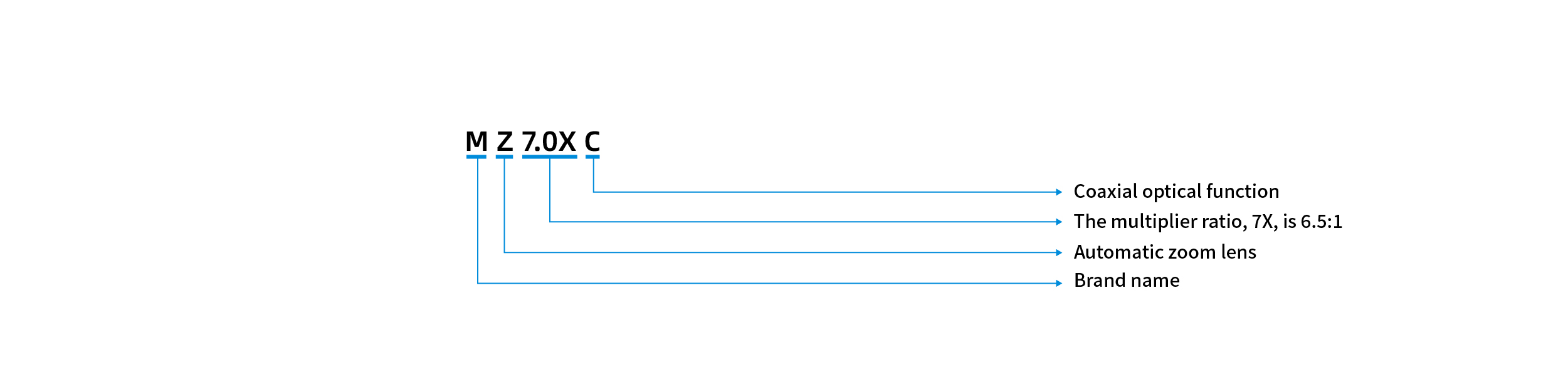

Model Specification
