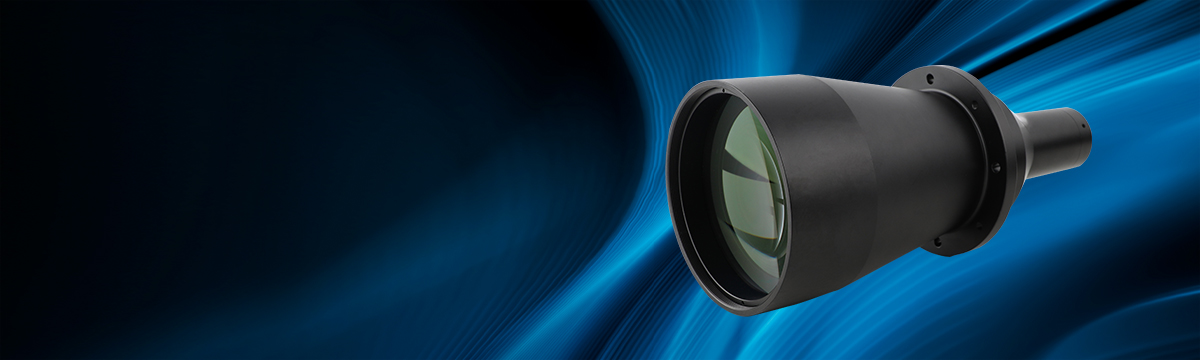

Bi Telecentric Lenses

Bi Telecentric Lenses

Telecentric lenses detection the whole object from the same angle of view, therefore, it does not suffer from perspective distortion and image positioning errors of three-dimensional features that occur when using standard lenses.

Contact Downloads

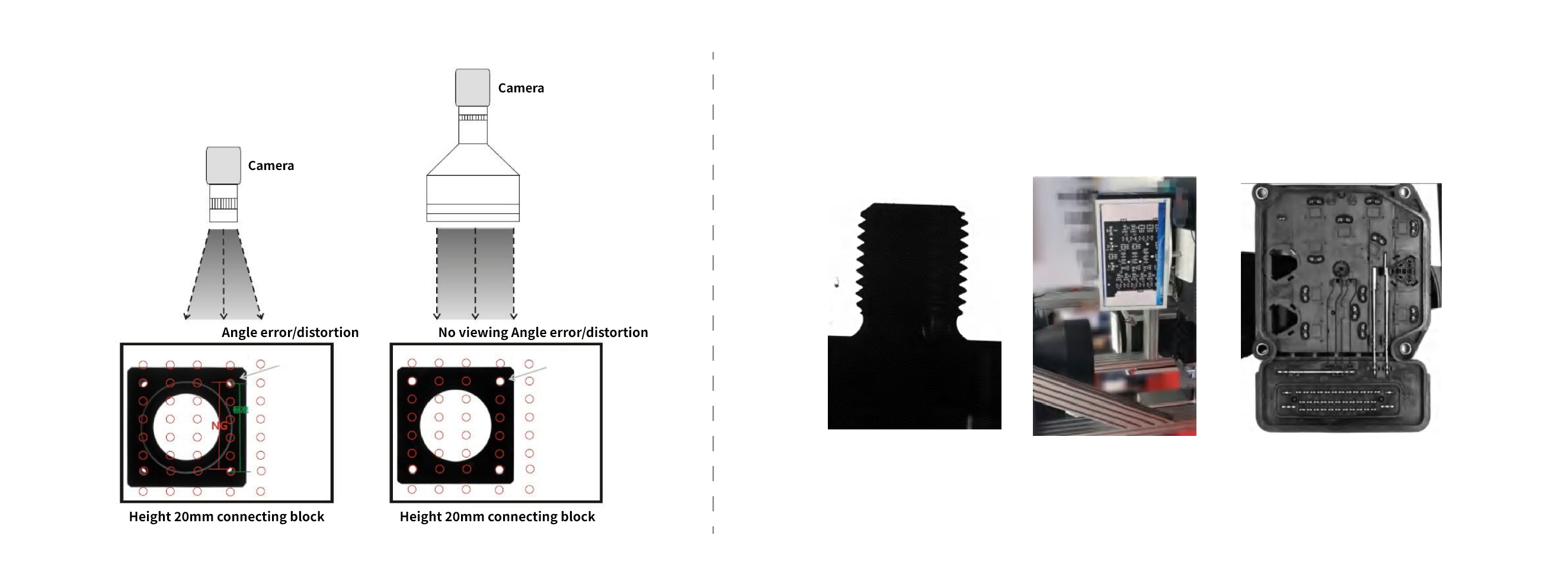

Features

    Even objects inside deep holes are clearly visible throughout the entire field of view
    Extraordinary depth of field avoids visual errors caused by product fluctuations
    High resolution ensures clear and contrasty images with distinct contours
    Extremely low distortion ensures stability for measurement applications
    Standard C-mount interface is perfect for pairing with industrial cameras with a 1″ or smaller imaging target
    Custom options are available based on customer-provided parameters
Features

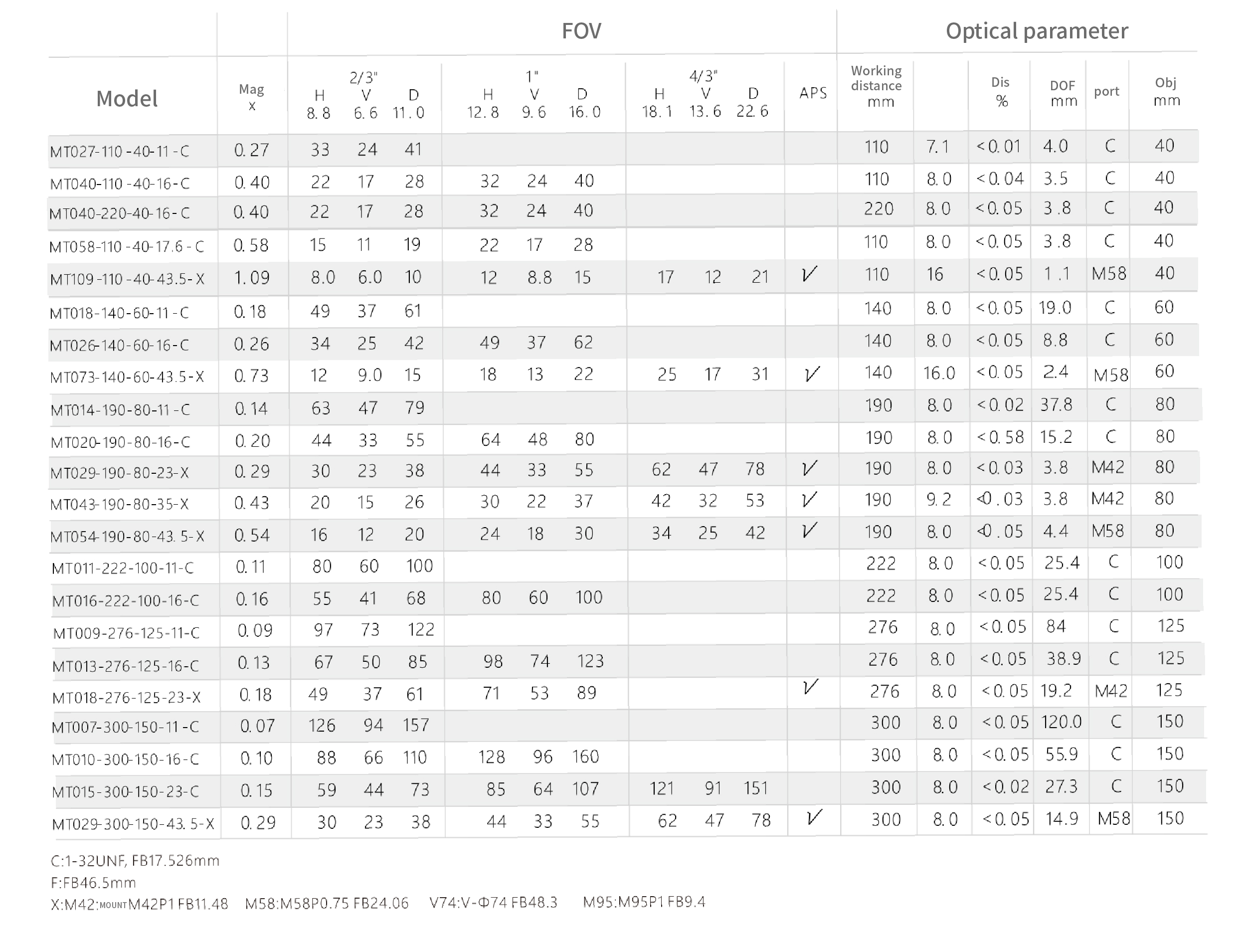

Product Parameters

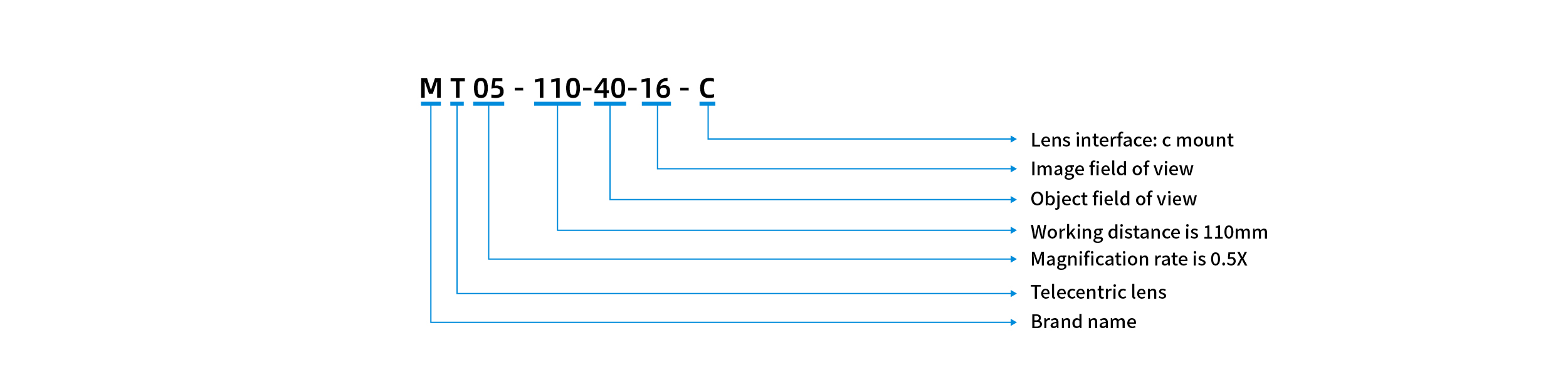

Model Specification
