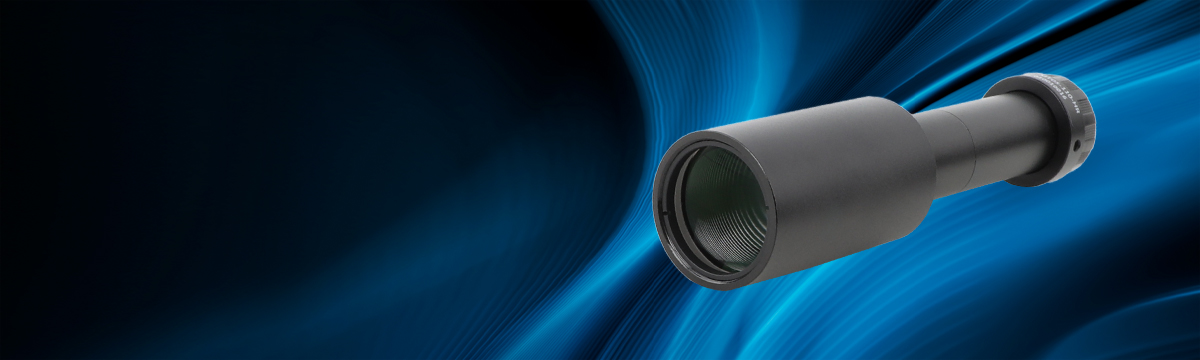

High Resolution Telecentric Lenses (HR-110)

The optical system with infinite focus can provide excellent image quality throughout the entire field of view. The system eliminate chromatic aberration and distortion, resulting in a bright and clear image with high contrast and resolution, which helps in high-precision measurement, positioning, and inspection.

Contact Downloads

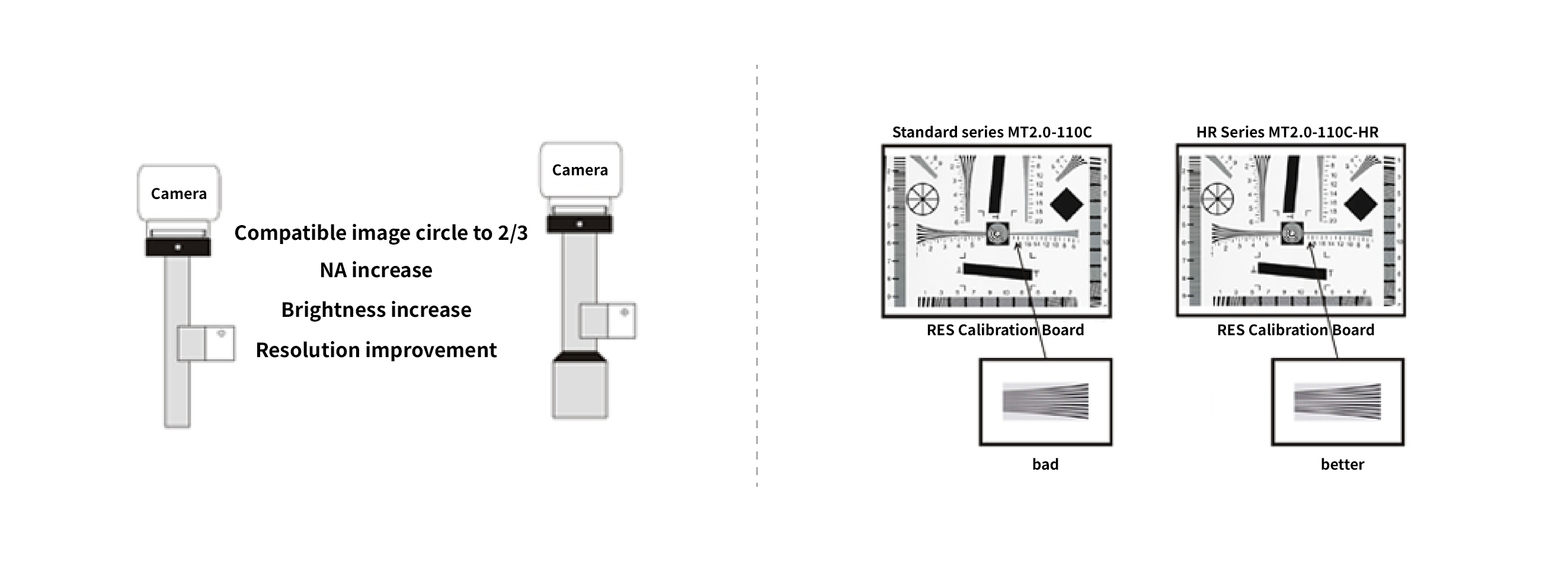

Features

Design with telecentricity (less than 0.2°) and low distortion (less than 0.3%), multiple magnifications with a range of 0.8 to 8x, standard C-mount design, maximum compatibility with 2/3″ sensors, and various working distances from 40-220mm or even longer. It is available with optional telecentric system and coaxial illumination system, divided into telecentric ring lens and telecentric coaxial lens. Custom configurations can be selected based on customer-provided parameter requirements.

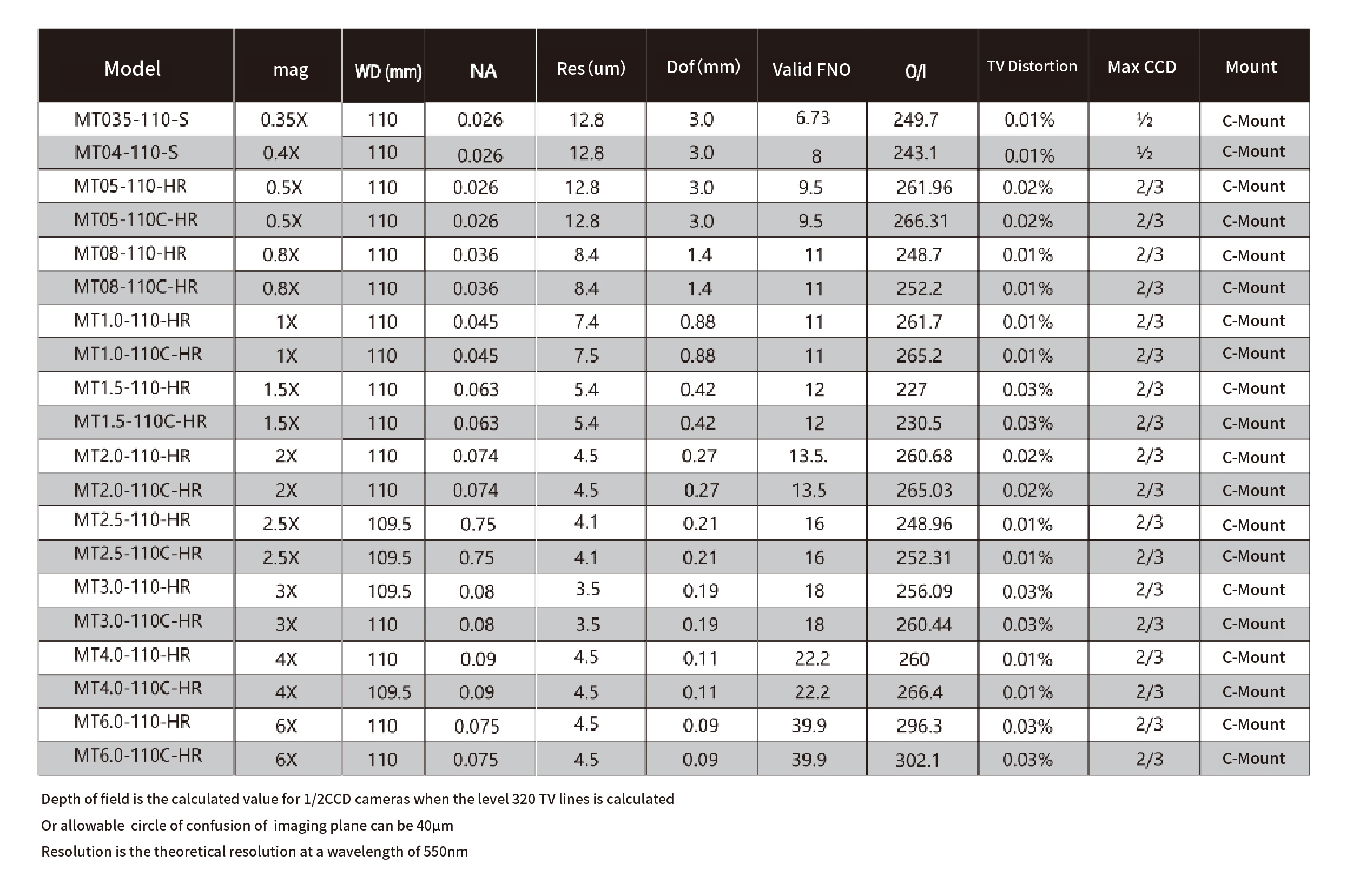

Product Parameters

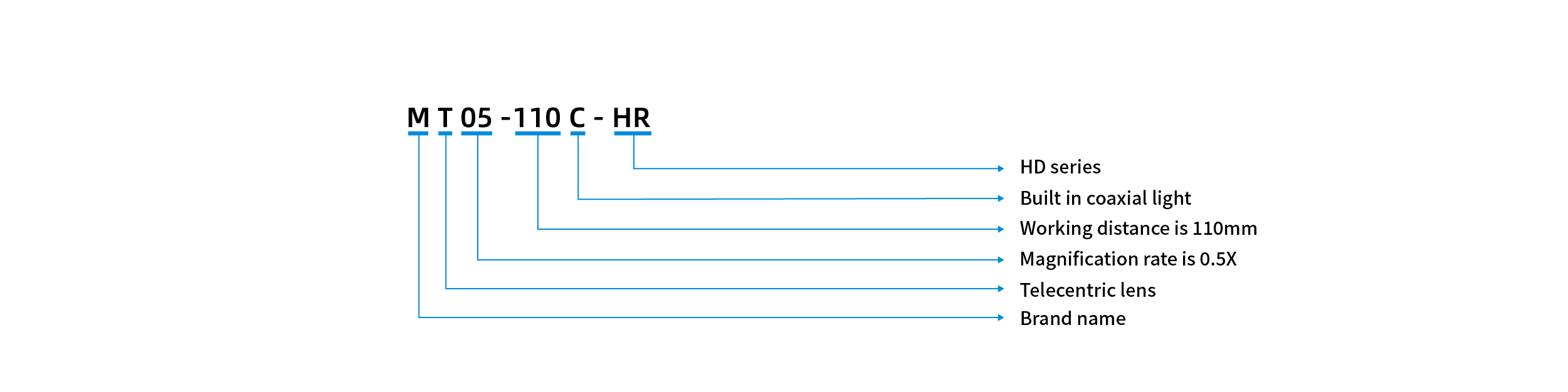

Model Specification
