High Resolution Illuminator MF Series

This series features excellent telecentricity and ultra-low distortion, making it suitable for machine vision applications such as metrology, CCD-based measurement, and high-precision positioning.

Contact Downloads

Features

Using parallel light and infinity focus, it can be used with objective lens or laser focusing lens, or it can be used with AP objective lens or laser focusing lens. The long working distance has excellent optical design with no field curvature and no monochromatic aberration throughout the field of view, making it suitable for various microscopes. It can be specially designed for near infrared and near ultraviolet wavelengths to meet the requirements of special materials imaging. Multiple focal length tube lenses are available, such as 100 and 200, etc. The maximum compatible image circle diameter is φ22.

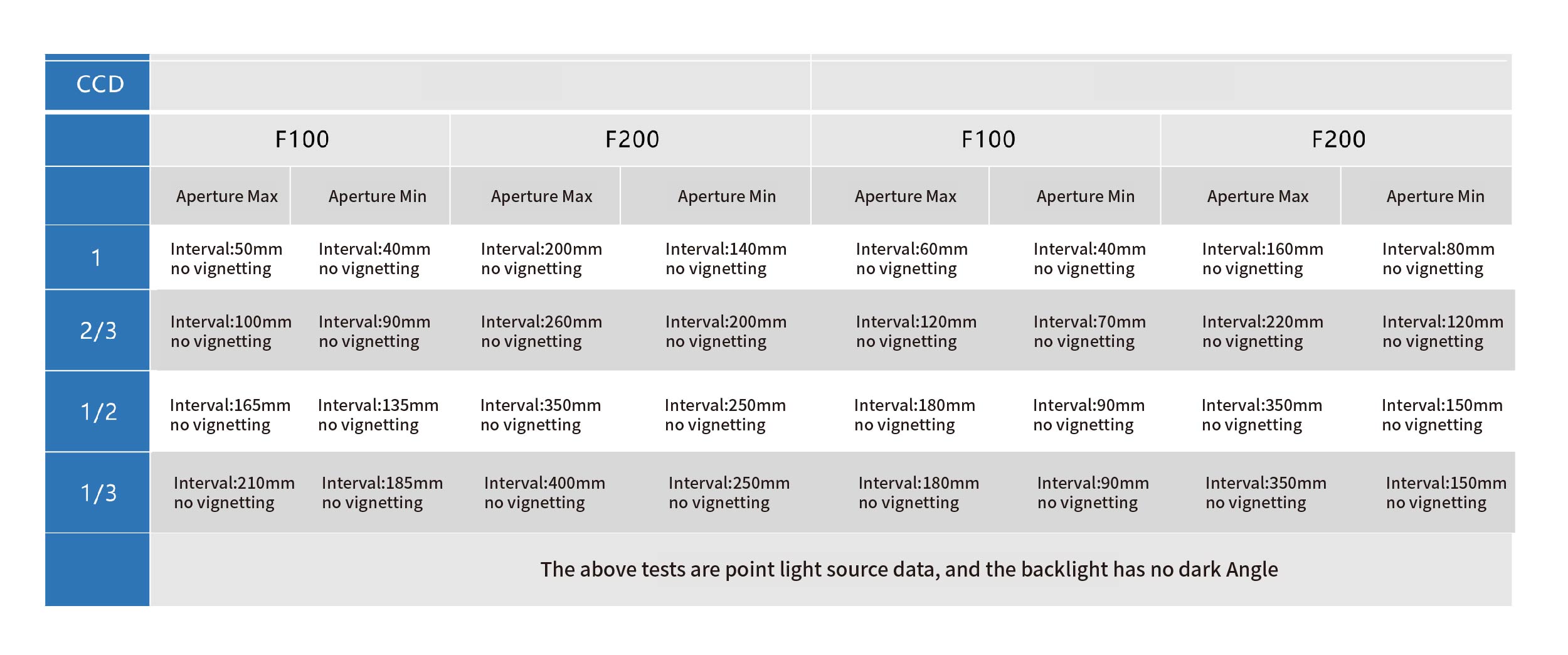

Product Parameters

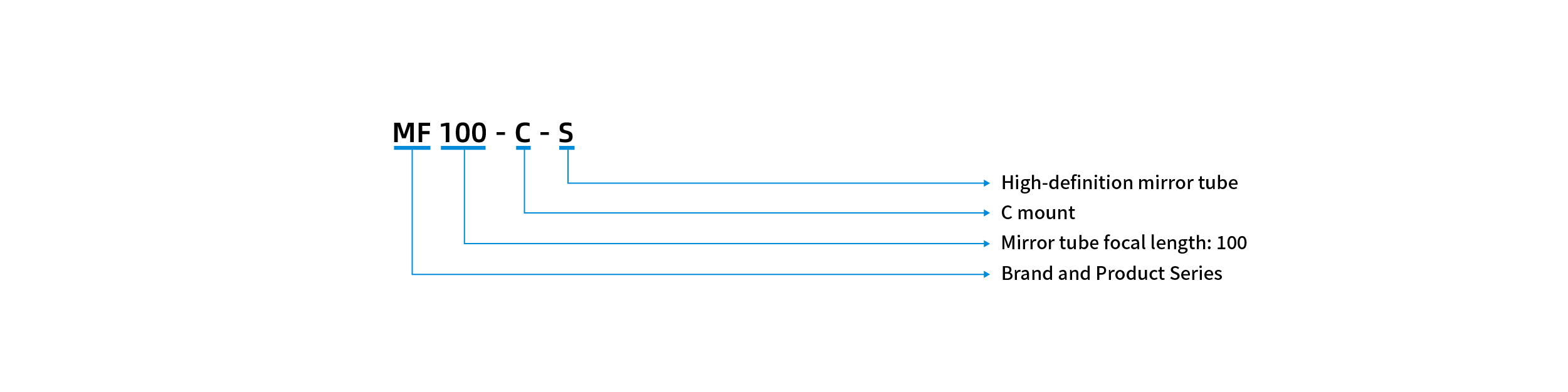

Model Specification
