High Resolution Telecentric Lenses（HR-65)

High Resolution Telecentric Lenses（HR-65)

This series features excellent telecentricity and ultra-low distortion, making it suitable for machine vision applications such as metrology, CCD-based measurement, and high-precision positioning.

Contact Downloads

Features

    Design with excellent telecentricity (less than 0.2°) and ultra-low distortion (less than 0.3%)?
    Multiple magnifications with a range of 0.8 to 8x, standard C-mount design, maximum compatibility with 2/3″ sensors.
    Multiple working distances from 40-220mm or even longer.
    Optional telecentric system and coaxial illumination system available, including telecentric ring lens and telecentric coaxial lens.
    Customizable options based on customer-provided parameter requirements.

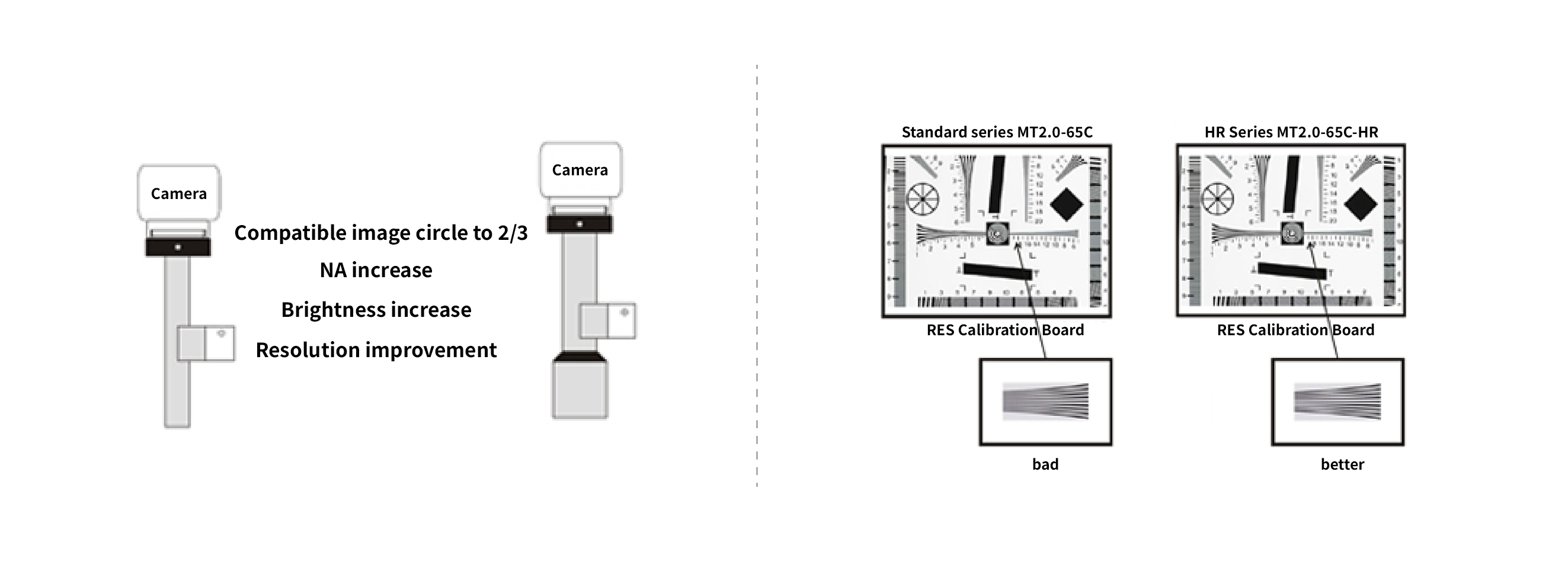

Features

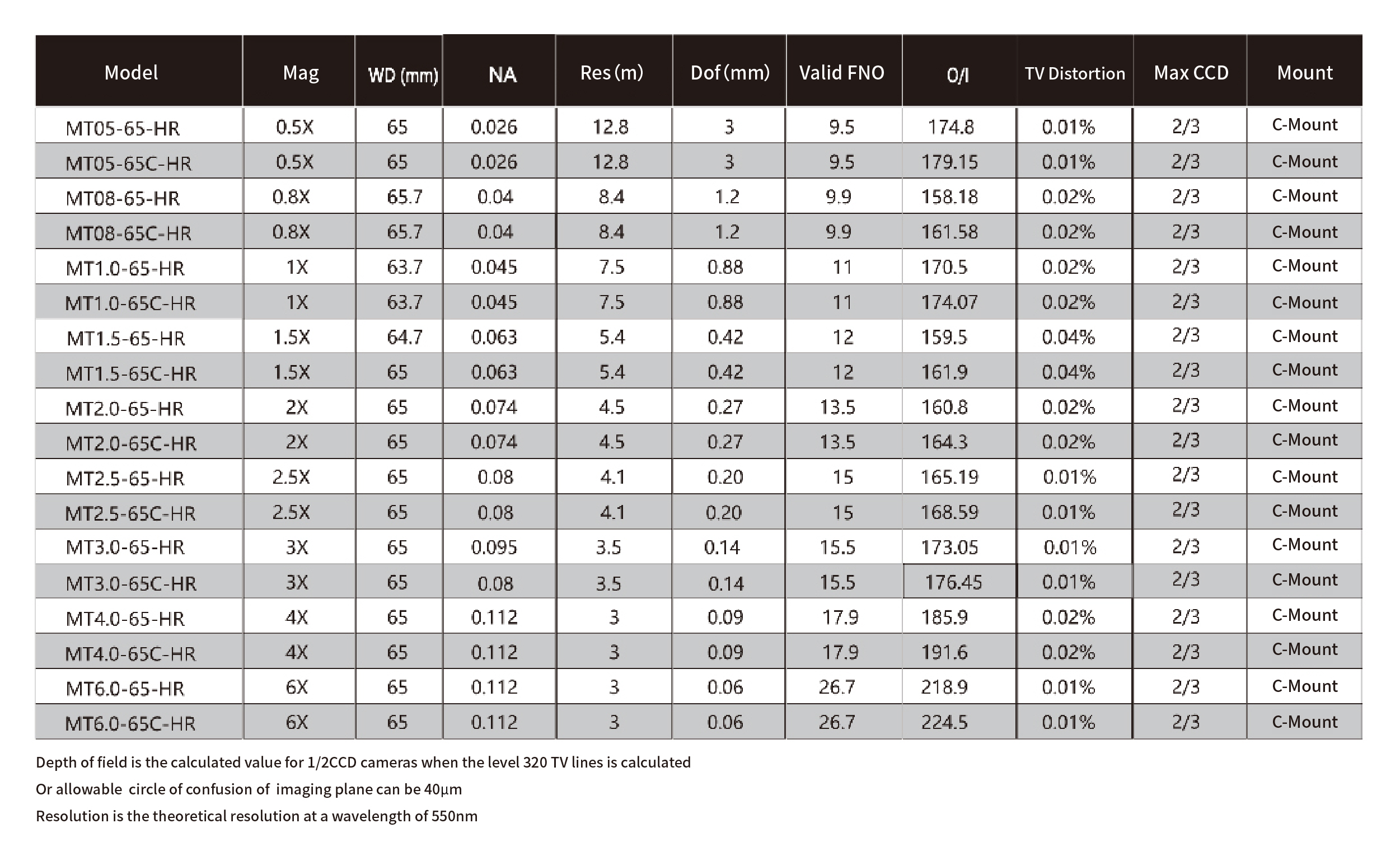

Product Parameters

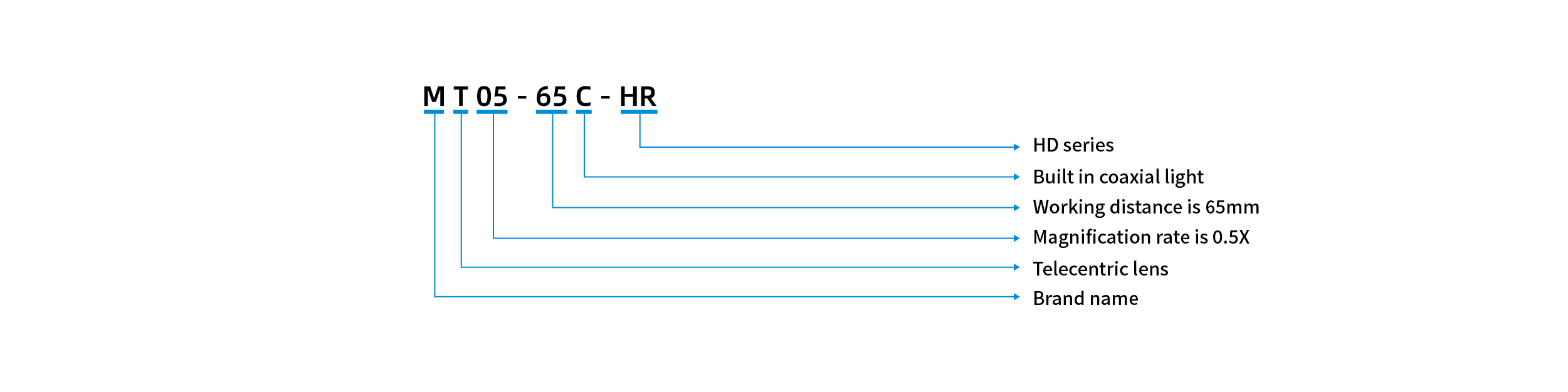

Model Specification
